Refractors |

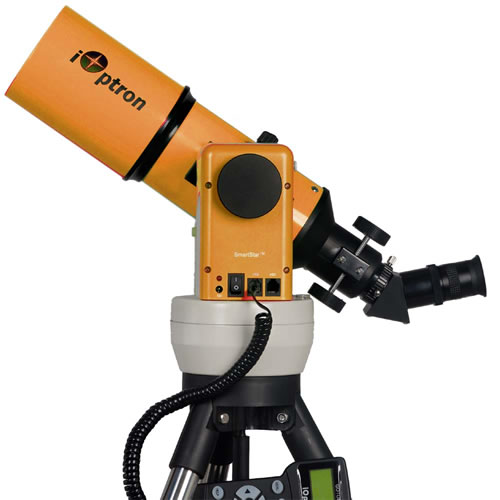

Cube-A R80
- Cosmic Orange |
|
# 8602R |
|
-
80mm achromatic refractor telescope
-
Heavy duty stainless steel tripod
-
Dual Mount: Alt-Azimuth and German Equatorial– The Cube™-- The only mount of its kind for ultimate rotation and universal compatibility
-
Includes the GoToNova® Controller. The most intuitive controller on the market.
-
~130,000 object database plus 256 user-defined objects
-
The largest LCD screen on the market with 8 lines and 21-character Hand Control with backlit LED buttons.
-
USB Port for PC Laptop control and firmware upgrades
-
Drive motor with 9-speed setting for precise tracking
Dual-axis Servomotor 32-channel GPS module standard on all A series telescopes
-
Standard-equipment AC connection (Optional DC adaptor available)
Optional 1.5 kg counterweight and bar (not included - can be purchased separately)
-
Technical Specifications
Optics |
Achromat Refractor |
Aperture |
80mm |
Focal Length |
400mm |
Ratio |
f/5 |
Resolution |
1.4” |
Magnitude Limit |
11.3th Magnitude |
Eye Pieces |
10mm and 25mm |
Conversion Lens |
3× |
Mount |
AltAzimuth Equatorial Dual Mount |
Motor |
Dual-Axis DC Servomotor, DC12V |
Speed |
Dual-Axis, 9-Gear, Electronic (1×,2×,8×,16×,64×,128×,256×,512×,MAX) |
Tracking |
Automatic |
Tripod |
1.25” Stainless Steel |
USB Port |
Yes |
Firmware Upgrade |
Yes |
PC Computer Control |
Yes |
Battery |
AA x 8(Not Included) |
GPS |
32-channel GPS |
Shipping Weight |
15 lbs |
Mount Weight |
3 lbs 9.9 oz |
Mount (Cube) Dimensions |
8 ¾ x 5 x 5 inches |
Tripod Weight |
5 lbs 9.9 oz |
Tripod Dimensions |
Height (fully extended in azimuth): 42 ¾ inches
Height (collapsed): 27 ½ inches |
Database |
~130,000 objects plus 256 user-defined objects |
|
|
|
|
|
Refractors |
Cube-A R80
- Cosmic Orange |
|
# 8602R |
|
|
Optics |
: |
Achromat Refractor |
|
Aperture |
: |
80mm |
|
Focal Length |
: |
400mm |
|
Ratio |
: |
f/5 |
|
Resolution |
: |
1.4” |
|
Magnitude Limit |
: |
11.3th Magnitude |
|
Eye Pieces |
: |
10mm and 25mm |
|
Conversion Lens |
: |
3× |
|
Mount |
: |
AltAzimuth Equatorial Dual Mount |
|
Motor |
: |
Dual-Axis DC Servomotor, DC12V |
|
Speed |
: |
Dual-Axis, 9-Gear, Electronic (1×,2×,8×,16×,64×,128×,256×,512×,MAX) |
|
Tracking |
: |
Automatic |
|
Tripod |
: |
1” Stainless Steel |
|
USB Port |
: |
Yes |
|
Firmware Upgrade |
: |
Yes |
|
PC Computer Control |
: |
Yes |
|
Battery |
: |
AA x 8(Not Included) |
|
GPS |
: |
32-channel GPS |
|
Shipping Weight |
: |
15 lbs |
|
Database |
: |
~130,000 objects plus 256 user-defined objects |
|
|
|
|
|
|
